Capacitors in Self-Excited Brushless Synchronous Generators

Capacitors are critical for voltage buildup and regulation in self-excited brushless synchronous generators. During startup, excitation capacitors leverage residual magnetism to initiate a self-sustaining feedback loop:

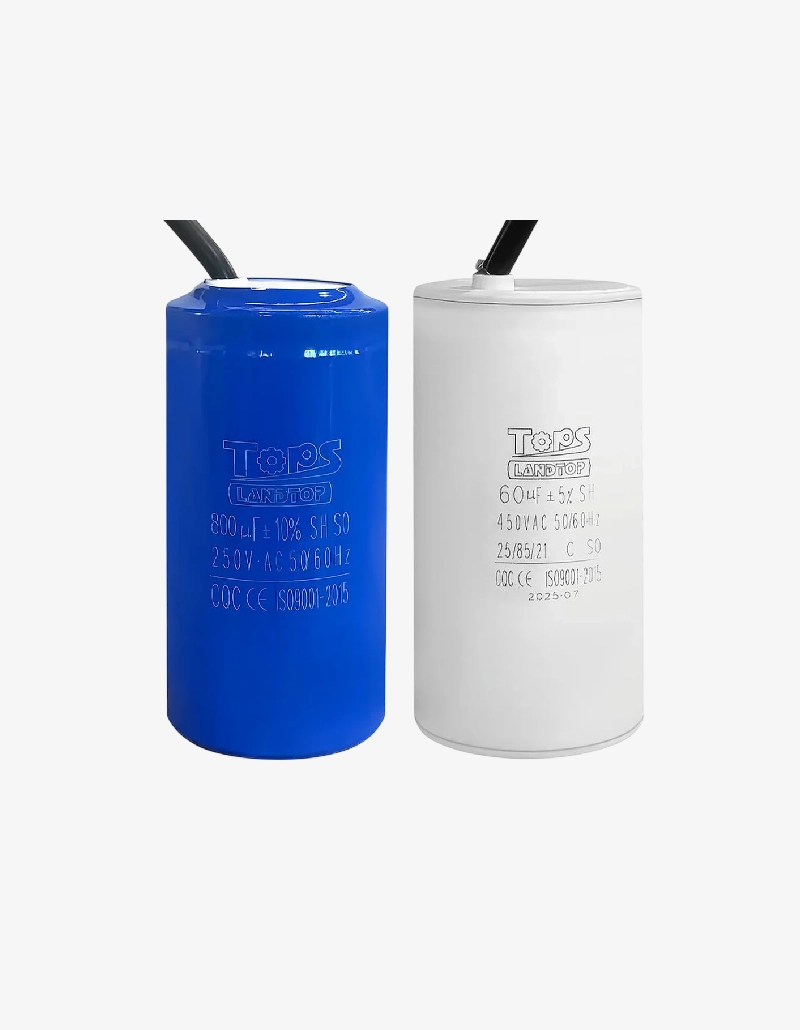

1. Starting Capacitor CD60: Provide the initial reactive power to amplify residual voltage. They create a resonant circuit with the stator windings, generating the magnetic field needed for voltage buildup without external DC excitation.
2. Running Capacitor CBB60: Maintain stable output voltage under load. They compensate for reactive power losses, regulate terminal voltage, and suppress harmonic distortions during operation. Their value is optimized for the generator’s rated frequency (e.g., 50/60 Hz) to ensure efficient energy transfer.

Unlike brushed designs, this capacitor-mediated excitation eliminates slip rings and brushes, enhancing reliability in harsh environments. Capacitor selection directly impacts voltage stability, THD, and load response.
